Hey Lads,

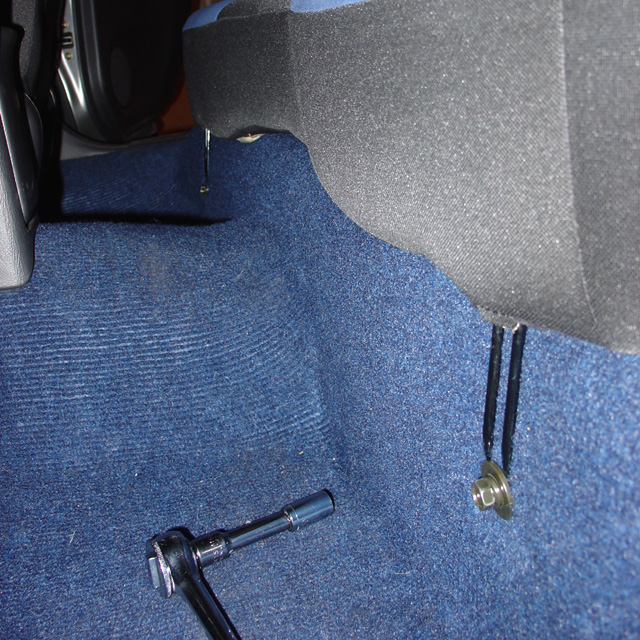

Had a search but to no avail. Pulling out my rear seats the other day I noticed one of the bolts is cooked and also bent....the ones that sit in the foot-well area ![]() 02 STI so GD. I believe the bolts are the same as the ones that hold the seat rails in place... So I wanted to order in 10 or so and replace the lot with Grade 5 + High Tensile in stainless or whatever is better than the shitty oem ones. The question, does anyone know what size/pitch/thread and length they are? From searching there is conflicting answers - M8 x 1.25, 3/8 x 1.5 Any ideas? Thanks
__________________
2005 WRX STI |
#2
|
||||
|
||||
![]()
Give West Coast Fasteners a call tomorrow, they usually have good quality stuff in stock at very reasonable prices. Take your bolts with you so they can match them up.
__________________
Bye bye betty blue. Hello F6. |
#3
|
|||
|
|||
![]()
Almost all bolts used on subarus are metric or metric fine. One exception is seatbelt bolts. These are 7/16unf.
But i think the ones you have pictured there are just a regular m8x1.25 with a large washer.
__________________
Doing it for all the wagons out there |
#5
|
||||
|
||||
![]()
Thanks for the replies
![]() Will source some when I am back in town
__________________
2005 WRX STI |
#6
|
|||
|
|||
![]()
Except for the front seats inner rear bolt. Which is a 7/16 UNF
__________________
Doing it for all the wagons out there |
#7
|
|||
|
|||
![]()
i should have some spare when I stripped the car for rally prep (didn't chuck any fastenings out) Currently overseas till next Sunday and give me a yell if you want me to check. I'm SOR
__________________
1980 MK2 Ford Escort RS2000 1979 MK2 Ford Escort RS1800 GRP4 spec historic rally car. 1998 GC8 WRX Tarmac rally car |
#8
|
||||
|
||||
![]()
It is worth putting a small amount of anti-seize on the threads too.
And yes Bram is correct. The inner rear bolt on the front seats is a typical manufacturer accepted standard seat belt bolt thread of 7/16 UNC.
__________________
[SIGPIC][/SIGPIC] |
#9
|
|||
|
|||
![]() Quote:
UNF is fine thread. UNC is coarse thread. Although they are both the same diameter, the threads are not compatible.
__________________
Doing it for all the wagons out there |
![]() |
